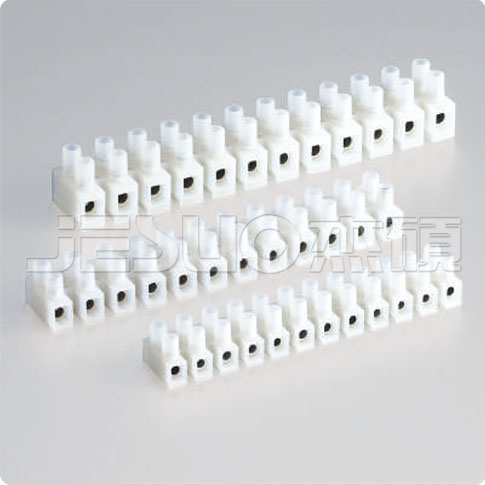

| 材质Material: 插片：黄铜 Insert: brass 塑料：PE，PP或PA Plastic: PE, PP or PA 颜色：本色，白色 Color: Natural, White |
技术参数 Technical Data: 最大工作温度 Max. Operating temperature: -30℃〜+110℃ for PA 符合标准 According to ：EN60998-1 EN60998-2-1 |
| 型号 Item No . |
额定电流 Rated current(A) |
导线截面积 Section size (mm2) |
尺寸 Dimension (mm) | |||||
| L (mm) |
W (mm) |
H (mm) |
A (mm) |
B (mm) |
Ød (mm) |
|||
| H-E8 | 17.5 | 1.5 | 95.37 | 16.9 | 15.05 | 6.3 | 8.2 | 2.9 |
| H-E10 | 24 | 2.5 | 117 | 20.5 | 16.8 | 9.6 | 10.1 | 3.2 |
| H-E12 | 41 | 6 | 140.1 | 23.9 | 18.8 | 10 | 12.2 | 4.2 |
| H-E14 | 57 | 10 | 158 | 25.7 | 25.15 | 10.75 | 13.6 | 5 |
