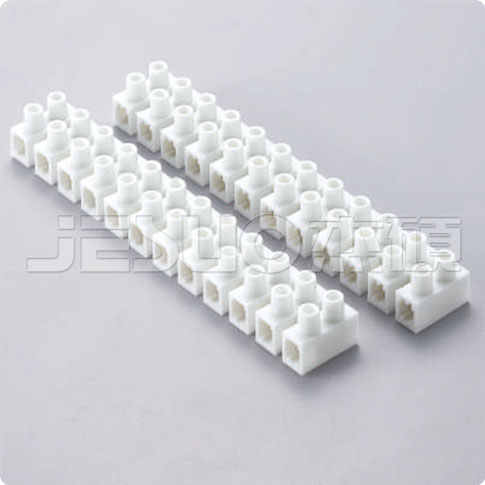

| 材质Material: 插片：黄铜 Insert: brass 塑料：PE，PP或PA Plastic: PE, PP or PA 颜色：本色，黑色，白色 Color: Natural, Black, White |
技术参数 Technical Data: 最大工作温度 Max. Operating temperature: -5℃〜+85℃ for PE 符合标准According to ：EN60998-1 EN60998-2-1 |
| 型号 Item No . |
额定电流 Rated current(A) |
导线截面积 Section size (mm2) |
尺寸 Dimension (mm) | |||||
| L (mm) |
W (mm) |
H (mm) |
A (mm) |
B (mm) |
Ød (mm) |
|||
| H-3 | 3 | 2.5/4 | 92 | 15.5 | 12.7 | 5.5 | 8.0 | 3.0 |
| H-6 | 6 | 6 | 119 | 17.3 | 13.9 | 6.5 | 8.2 | 3.3 |
| H-10 | 10 | 10 | 131 | 20.85 | 16.4 | 7.25 | 11.2 | 3.71 |
| H-15 | 15 | 12 | 135 | 22.65 | 18.25 | 8.25 | 11.5 | 4.2 |
| H-20 | 20 | 14 | 141.6 | 22.65 | 18.4 | 8.5 | 12.2 | 4.5 |
| H-30 | 30 | 16 | 165 | 24.1 | 21.1 | 9.5 | 14.1 | 5.5 |
| H-60 | 60 | 25 | 190 | 30.8 | 25.2 | 11.15 | 16.5 | 6.3 |
| H-80 | 80 | 30 | 201 | 36 | 22.65 | 12.1 | 18.15 | 6.9 |
| H-100 | 100 | 35 | 228 | 38 | 33 | 13.8 | 19.4 | 7.4 |
| H-150 | 150 | 40 | 261 | 44 | 33 | 21.2 | 22 | 8.3 |
