| ●材料：镀镍黄铜 ●固定连接组件：采用UL认可的尼龙材料 ●密封盖：丁晴橡胶(NBR) 耐候橡胶(EPDM) ●O型密封圈：丁晴橡胶(NBR) ●保护等级：IP68-10 ●工作温度：-40℃至100℃ 或瞬间可耐热至120℃ ●备注：其它螺纹规格(G,PF,BSP,PS,NPT) 可定做 |

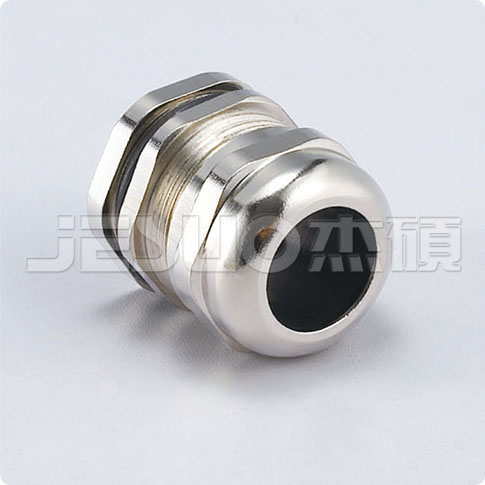

●Material: Nickel-plated brass ●Fixture pack: PA (NYLON), UL 94 ●Hermetic seal: NBR EPDM ●O-Seal ring: NBR ●Protection degree: IP68-10 ●Working temperature: -40℃ to 100℃ Instantaneous heat resistance up to 120℃ ●Note: Other screw thread type (G, PF, BSP, PS, NPT) can be supplied as request |

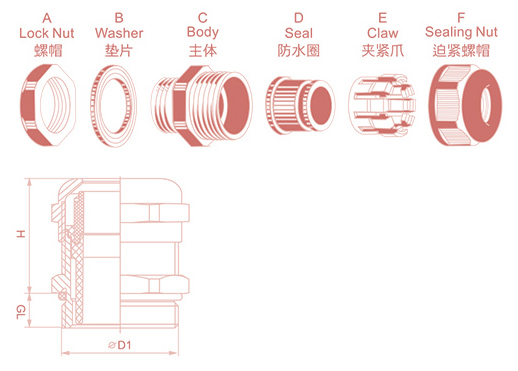

| Thread |  mm |
H mm |
GL mm |
 mm |
| 3/8″NPT | 4-8 | 21 | 15 | 17/19 |
| 3/8″NPT | 2-6 | 21 | 15 | 17/19 |
| 1/2″NPT | 6-12 | 24 | 13 | 22/24 |
| 1/2″NPT | 5-9 | 24 | 13 | 22/24 |
| 3/4″NPT | 13-18 | 25 | 13 | 30 |
| 3/4″NPT | 9-16 | 25 | 13 | 30 |
| 1″NPT | 18-25 | 29 | 19 | 40 |
| 1″NPT | 13-20 | 29 | 19 | 40 |
