导线范围 Size of cable: 0.5~1.5mm2(A.W.G 22~16)
最大电流 Max. Current=10A
| 型号 Item No . |
材质厚度 Thickness Of Material (mm) |
尺寸 Dimension (mm) | 颜色 Color |
|||||

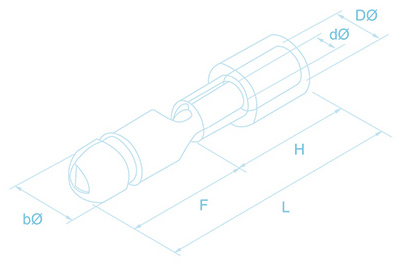

| bØ | F | DØ | dØ | H | L | |||
| MPD 1.25-156 | 0.4 | 4.0 | 11.0 | 2.7 | 1.7 | 10.0 | 21.0 | 红Red |
导线范围 Size of cable: 1.5~2.5mm2(A.W.G 16~14)
最大电流 Max. Current=15A
| 型号 Item No . |
材质厚度 Thickness Of Material (mm) |
尺寸 Dimension (mm) | 颜色 Color |
|||||
| bØ | F | DØ | dØ | H | L | |||
| MPD 2-156 | 0.4 | 4.0 | 11.0 | 2.7 | 2.3 | 10.0 | 21.0 | 蓝Blue |
| MPD 2-195 | 0.4 | 4.0 | 11.0 | 2.7 | 2.3 | 10.0 | 21.0 | |
导线范围 Size of cable: 4~6mm2(A.W.G 12~10)
最大电流 Max. Current=24A
| 型号 Item No . |
材质厚度 Thickness Of Material (mm) |
尺寸 Dimension (mm) | 颜色 Color |
|||||
| bØ | F | DØ | dØ | H | L | |||
| MPD 5.5-195 | 0.4 | 4.0 | 11.0 | 4.5 | 3.4 | 12.5 | 25.0 | 黄Yellow |
