●材料：尼龙6
●温度：-40℃～105℃短时间150℃
●防护等级：IP66
●阻燃性能：自熄灭性好；不含卤素，磷、镉。
●Material: Polyamide 6
●Temperature Range: Min-40℃, Max105℃,Short-term150℃
●Protection degree:IP66
●Flame-retardant: Self-extinguishing, free of halogen, phosphor and cadmium

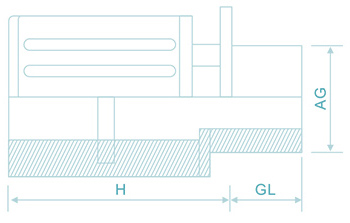

| 型号 Item No. |
适配软管 Suitable flexible pipe |
螺纹尺寸公制 Metric dimension of thread |
AG外径 AG Outer diameter (mm) |
AG内径 AG Inner diameter (mm) |
GL (mm) |
H (mm) |
包装
(个/包) Packing (units /pack) |
| JS-SM-M12 | AD10.0 | M12×1.5 | 12.0 | 8.0 | 10 | 18.0 | 100 |
| JS-SM-M16 | AD10.0 | M16×1.5 | 16.0 | 10.0 | 10 | 19.0 | 100 |
| JS-SM-M16 | AD13.0 | M16×1.5 | 16.0 | 10.0 | 10 | 19.0 | 100 |
| JS-SM-M18 | AD15.8 | M18×1.5 | 18.0 | 12.0 | 10 | 23.0 | 100 |
| JS-SM-M16 | AD15.8 | M16×1.5 | 16.0 | 10.0 | 10 | 23.0 | 50 |
| JS-SM-M20 | AD18.5 | M20×1.5 | 20.0 | 14.3 | 12 | 25.0 | 50 |
| JS-SM-M20 | AD21.2 | M20×1.5 | 20.0 | 17.0 | 13 | 27.0 | 50 |
| JS-SM-M24 | AD21.2 | M24×1.5 | 24.0 | 17.0 | 13 | 27.0 | 50 |
| JS-SM-M25 | AD25.0 | M25×1.5 | 25.0 | 19.5 | 14 | 30.0 | 50 |
| JS-SM-M25 | AD28.5 | M25×1.5 | 25.0 | 22.0 | 20 | 30.0 | 50 |
| JS-SM-M27 | AD28.5 | M27×2.0 | 27.0 | 22.0 | 14 | 33.0 | 50 |
| JS-SM-M32 | AD34.5 | M32×1.5 | 32.0 | 26.0 | 20 | 35.0 | 20 |
| JS-SM-M36 | AD34.5 | M36×2.0 | 36.0 | 29.0 | 14 | 35.0 | 20 |
| JS-SM-M48 | AD42.5 | M48×2.0 | 48.0 | 36.5 | 15 | 38.5 | 10 |
| JS-SM-M60 | AD54.5 | M60×2.0 | 60.0 | 53.0 | 16 | 39.0 | 10 |
