| 型号 Item No . |

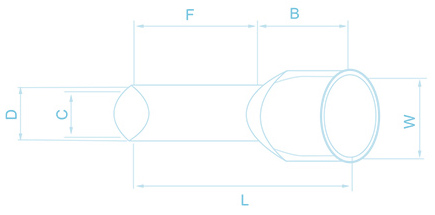

尺寸 Dimension (mm) | 导线范围 Size of Cable | 颜色 Color 德式(Up)Germany use 法式(down)France use |
||||||
| F | L | W | B | D | C | AWG | mm2 | ||
| E0506 | 6.0 | 12.0 | 2.6 | 6.0 | 1.3 | 1.0 | 22 | 0.5 | 橙色Orange 白色White |
| E0508 | 8.0 | 14.0 | |||||||
| E0510 | 10.0 | 16.0 | |||||||
| E7506 | 6.0 | 12.4 | 2.8 | 6.4 | 1.5 | 1.2 | 20 | 0.75 | 白色White 蓝色Blue |
| E7508 | 8.0 | 14.6 | |||||||
| E7510 | 10.0 | 16.4 | |||||||
| E7512 | 12.0 | 18.4 | |||||||
| E1006 | 6.0 | 12.4 | 3.0 | 6.4 | 1.7 | 1.4 | 18 | 1.0 | 黄色Yellow 红色Red |
| E1008 | 8.0 | 14.6 | |||||||
| E1010 | 10.0 | 16.4 | |||||||
| E1012 | 12.0 | 18.4 | |||||||
| E1508 | 8.0 | 14.6 | 3.5 | 6.4 | 2.0 | 1.7 | 16 | 1.5 | 红色Red 黑色Black |
| E1510 | 10.0 | 16.4 | |||||||
| E1518 | 18.0 | 24.4 | |||||||
| E2508 | 8.0 | 15.2 | 4.0 | 7.0 | 2.6 | 2.3 | 14 | 2.5 | 蓝色Blue 灰色Grey |
| E2512 | 12.0 | 19.0 | |||||||
| E2518 | 18.0 | 25.0 | |||||||
| E4009 | 9.0 | 16.5 | 4.4 | 7.5 | 3.2 | 2.8 | 12 | 4.0 | 灰色Grey 橙色Orange |
| E4012 | 12.0 | 19.5 | |||||||
| E4018 | 18.0 | 25.5 | |||||||
| E6012 | 12.0 | 20.0 | 6.3 | 8.0 | 3.9 | 3.5 | 10 | 6.0 | 黑色Black 绿色Green |
| E6018 | 18.0 | 26.0 | |||||||
| E10-12 | 12.0 | 21.5 | 7.6 | 9.5 | 4.9 | 4.5 | 7 | 10.0 | 乳白色Milk white 棕色Brown(palm) |
| E10-18 | 18.0 | 27.5 | |||||||
| E16-12 | 12.0 | 22.2 | 8.8 | 10.2 | 6.2 | 5.8 | 5 | 16.0 | 绿色Green 乳白色Milk white |
| E16-18 | 18.0 | 28.2 | |||||||
| E25-16 | 16.0 | 29.0 | 11.2 | 13.0 | 7.9 | 7.5 | 4 | 25.0 | 棕色Brown(palm) 黑色Black |
| E25-22 | 22.0 | 35.0 | |||||||
| E35-16 | 16.0 | 30.0 | 12.7 | 14.0 | 8.7 | 8.3 | 2 | 35.0 | 灰棕色Grey brown 红色Red |
| E35-25 | 25.0 | 39.0 | |||||||
| E50-20 | 20.0 | 36.0 | 16.0 | 15.0 | 10.9 | 10.3 | 1/0 | 50.0 | 橄榄色Olive colour 绿色Green |
| E50-25 | 25.0 | 41.0 | |||||||
| E70-20 | 20.0 | 37.0 | 16.0 | 17.0 | 14.3 | 13.5 | 2/0 | 70 | 黄色Yellow 黄色Yellow |
| E70-25 | 25.0 | 42.0 | |||||||
| E70-27 | 27.0 | 44.0 | |||||||
| E95-25 | 25.0 | 44.0 | 18.5 | 19.0 | 15.3 | 14.5 | 3/0 | 95 | 红色Red 红色Red |
| E120-27 | 27.0 | 47.6 | 20.3 | 20.6 | 17.5 | 16.5 | 4/0 | 120 | 蓝色Bule 蓝色Bule |
| E120-32 | 32.0 | 52.6 | |||||||
| E150-27 | 27.0 | 52.6 | 23.4 | 25.6 | 20.3 | 19.6 | 250/300 | 150 | 黄色Yellow 黄色Yellow |
| E150-32 | 32.0 | 57.6 | |||||||
