导线范围 Size of cable: 0.5~1.5mm2(A.W.G 22~16)
最大电流 Max. Current=10A
| 型号 Item No . |
材质厚度 Thickness Of Material (mm) |
尺寸 Dimension (mm) | 颜色 Color |
|||||

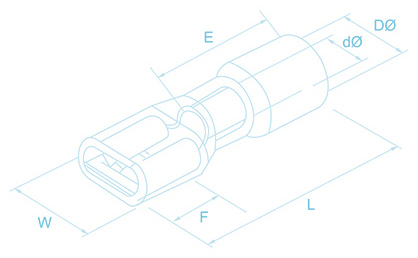

| W | L | F | E | D | d | |||

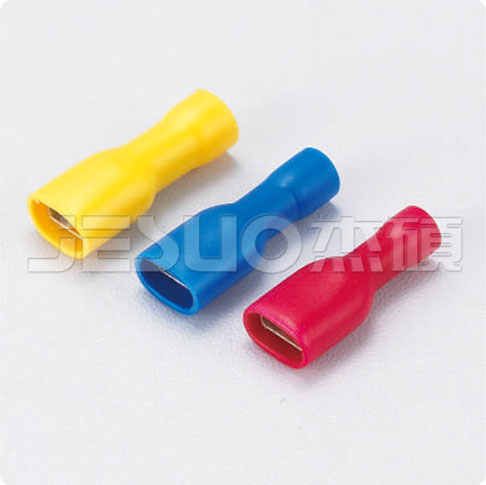

| FDFD1.25-110 | 0.30 | 3.8 | 20.0 | 6.4 | 10.0 | 2.7 | 1.7 | 红 Red |
| FDFD1.25-187 | 0.35 | 5.6 | 20.0 | 6.5 | ||||
| FDFD1.25-250 | 0.40 | 7.4 | 21.5 | 7.9 | ||||
导线范围 Size of cable: 1.5~2.5mm2(A.W.G 16~14)
最大电流 Max. Current=15A
| 型号 Item No . |
材质厚度 Thickness Of Material (mm) |
尺寸 Dimension (mm) | 颜色 Color |
|||||
| W | L | F | E | D | d | |||
| FDFD2-110 | 0.30 | 3.8 | 20.0 | 6.4 | 10.0 | 3.3 | 2.3 | 蓝 Blue |
| FDFD2-187 | 0.35 | 5.6 | 20.0 | 6.5 | ||||
| FDFD2-250 | 0.40 | 7.7 | 21.5 | 7.9 | ||||
导线范围 Size of cable: 4~6mm2(A.W.G 12~10)
最大电流 Max. Current=24A
| 型号 Item No . |
材质厚度 Thickness Of Material (mm) |
尺寸 Dimension (mm) | 颜色 Color |
|||||
| W | L | F | E | D | d | |||
| FDFD5.5-250 | 0.4 | 7.4 | 25.5 | 7.9 | 14.0 | 4.5 | 3.4 | 黄 Yellow |
