| ●材料：采用UL认可的尼龙材料 ●密封盖：丁晴橡胶(NBR),耐候橡胶(EPDM) ●工作温度：静态-40℃至100℃ 或瞬间可耐热至120℃ 动态-20℃至80℃ 或瞬间可耐热至100℃ ●防护等级：IP68 ●颜色种类：灰色,黑色,其它颜色可定做 |
●Material: PA (NYLON), UL 94 ●Hermetic seal: NBR, EPDM ●Working temperature: -40℃ to 100℃ in static state Instantaneous heat resistance up to 120℃ -20℃ to 80℃ in dynamic state Instantaneous heat resistance up to 100℃ ●Degree of Protection: IP68-10 ●Color: Grey, Black, other colors customized. |

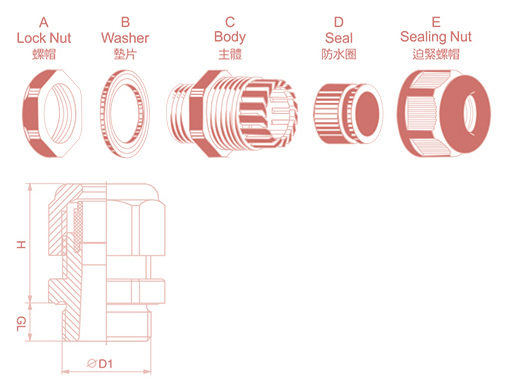

| Thread |  mm |
H mm |
GL mm |
 mm |
| PG 7 | 3-6,5 | 21 | 8 | 15 |
| PG 7 | 2-5 | 21 | 8 | 15 |
| PG 9 | 4-8 | 21 | 8 | 19 |
| PG 9 | 2-6 | 22 | 8 | 19 |
| PG 11 | 5-10 | 25 | 8 | 22 |
| PG 11 | 3-7 | 25 | 8 | 22 |
| PG 13,5 | 6-12 | 27 | 9 | 24 |
| PG 13,5 | 5-9 | 27 | 9 | 24 |
| PG 16 | 10-14 | 28 | 10 | 27 |
| PG 16 | 7-12 | 28 | 10 | 27 |
| PG 21 | 13-18 | 31 | 11 | 33 |
| PG 21 | 9-16 | 31 | 11 | 33 |
| PG 29 | 18-25 | 39 | 11 | 42 |
| PG 29 | 13-20 | 39 | 11 | 42 |
| PG 36 | 22-32 | 48 | 13 | 53 |
| PG 36 | 20-26 | 48 | 13 | 53 |
| PG 42 | 32-38 | 49 | 13 | 60 |
| PG 42 | 25-31 | 49 | 13 | 60 |
| PG 48 | 37-44 | 49 | 14 | 65 |
| PG 48 | 29-35 | 49 | 14 | 65 |
