●材质：南亚硬质P V C (白色)，绝缘性良好、不自燃、耐温至8 5℃。

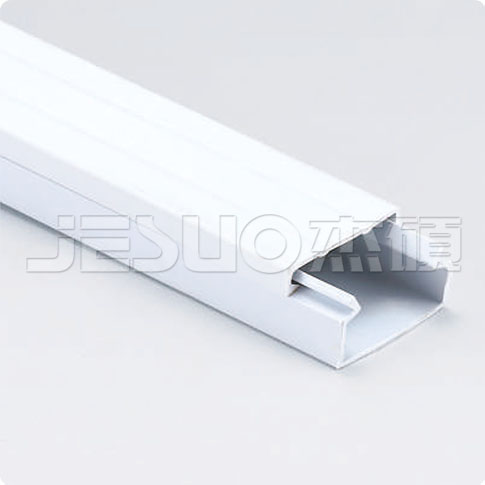

●构造：由槽底及槽盖两部分组成。
●用途：舞台、电气、冷气工程及室内明线配线等适用。
●特点：密封式绝缘配线槽专为防尘、防鼠而设计。
●Material: Made from PVC (white), good insulation, nonpyroph or icity and heat-resisting up to 85℃.
●Structure: Made up of duct bottom and lid.
●Application: Suitable for open wire's distributing of stage, electric, cold air engineering and indoors.
●Character: Sealed insulating distributing slot is designed special for dust proof and mouse proof.
| 型号 Type |
高× 宽 H×W(mm) |
电线容量 Contained wire (2.02) |
长度 Length |
| PEC-1015 | 10×15 | 2-5 PCS | 2m |
| PEC-1020 | 10×20 | 3-6 PCS | 2m |
| PEC-1025 | 10×25 | 5-10 PCS | 2m |
| PEC-1035 | 10×35 | 10-15 PCS | 2m |
| PEC-1525 | 15×25 | 5-10 PCS | 2m |
| PEC-1530 | 15×30 | 5-15 PCS | 2m |
| PEC-2030 | 20×30 | 10-20 PCS | 2m |
| PEC-2035 | 20×35 | 15-25 PCS | 2m |
| PEC-2050 | 20×50 | 20-25 PCS | 2m |
| PEC-2540 | 25×40 | 20-40 PCS | 2m |
| PEC-3045 | 30×45 | 25-45 PCS | 2m |
| PEC-3050 | 30×50 | 30-50 PCS | 2m |
| PEC-3060 | 30×60 | 55-65 PCS | 2m |
| PEC-3080 | 30×80 | 75-85 PCS | 2m |
| PEC-30100 | 30×100 | 130-150 PCS | 2m |
| PEC-5015 | 50×15 | 10-25 PCS | 2m |
| PEC-5025 | 50×25 | 25-45 PCS | 2m |
| PEC-5035 | 50×35 | 50-60 PCS | 2m |
| PEC-5045 | 50×45 | 70-80 PCS | 2m |
| PEC-5050 | 50×50 | 80-90 PCS | 2m |
| PEC-5055 | 50×55 | 100-110 PCS | 2m |
| PEC-5080 | 50×80 | 180-200 PCS | 2m |
| PEC-8045 | 80×45 | 160-180 PCS | 2m |
| PEC-8050 | 80×50 | 180-200 PCS | 2m |
| PEC-8055 | 80×55 | 180-210 PCS | 2m |
| PEC-8080 | 80×80 | 240-290 PCS | 2m |
| PEC-80100 | 80×100 | 260-350 PCS | 2m |
| PEC-50100 | 50×100 | 200-260 PCS | 2m |
| PEC-50120 | 50×120 | 240-290 PCS | 2m |
| PEC-80120 | 80×120 | 300-400 PCS | 2m |
| PEC-100160 | 100×160 | 450-600 PCS | 2m |
| PEC-160200 | 160×200 | 1040-1200 PCS | 2m |
