| ●材料：采用UL认可的尼龙材料 ●密封盖：丁晴橡胶(NBR), 耐候橡胶(EPDM) ●工作温度：静态-40℃至100℃ 或瞬间可耐热至120℃ 动态-20℃至80℃ 或瞬间可耐热至100℃ ●防水等级：IP68 ●颜色种类：灰色,黑色,其它颜色可定做 |
●Material: PA (NYLON), UL 94 ●Hermetic seal: NBR, EPDM ●Working temperature: -40℃ to 100℃ in static state Instantaneous heat resistance up to 120℃ -20℃ to 80℃ in dynamic state Instantaneous heat resistance up to 100℃ ●Degree of Protection: IP68-10 ●Color: Grey, Black, other colors customized. |

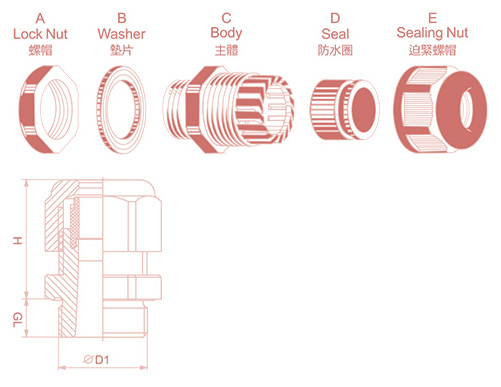

| Thread |  mm |
H mm |
GL mm |
 mm |
| 3/8″NPT | 4-8 | 22 | 15 | 22/19 |
| 3/8″NPT | 2-6 | 22 | 15 | 22/19 |
| 1/2″NPT | 6-12 | 27 | 13 | 24 |
| 1/2″NPT | 5-9 | 27 | 13 | 24 |
| 1/2″NPT | 10-14 | 28 | 13 | 27 |
| 1/2″NPT | 7-12 | 28 | 13 | 27 |
| 3/4″NPT | 13-18 | 31 | 14 | 33 |
| 3/4″NPT | 9-16 | 31 | 14 | 33 |
| 1″NPT | 18-25 | 39 | 19 | 42 |
| 1″NPT | 13-20 | 39 | 19 | 42 |
| 1 1/4″NPT | 18-25 | 39 | 16 | 46/42 |
| 1 1/4″NPT | 13-20 | 39 | 16 | 46/42 |
| 1 1/2″NPT | 22-32 | 48 | 20 | 53 |
| 1 1/2″NPT | 20-26 | 48 | 20 | 53 |
