●特性和用途：热收缩管是无卤、环保、阻燃、绝缘、非常柔软有弹性、收缩温度低、收缩等特性，广泛应用于电线的连接、焊点保护、电线端部处理、电线标志、金属的防锈、防腐、电阻器、电容器的绝缘保护，大管可用于铜排、铝排等 低压柜架上。收缩比率2：1。

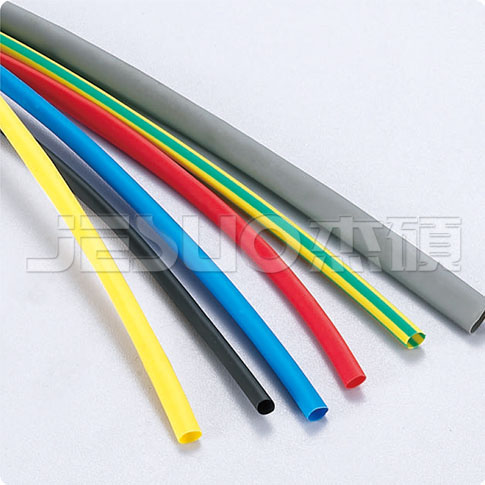

●颜色：黑、红、绿、黄、蓝、白、透明、黄绿双色(其它颜色均可定做)
●Heat shrinkable tubes are featured with halogen free, environmental protection, fire
retardation, insulation, flexible, elasticity, low shrinkage temperature, rapid shrinkage, etc, are
widely applied to wire connection, soldered joint protection, end treatment of wire, wire
marking, rust prevention and corrosion protection of metal, insulation protection of resistor and
capacitor, etc. The large tubes can be applied to copper-bar, aluminum-bar and other lowvoltage
tank brackets, shrindageratio is 2:1.
●Color: black, red, green, yellow, blue, white, transparent, yellow/green(other colors can be
customized)
| 规格 Specification mm |
收缩前 AS Supplied |
收缩后 After Shrinkage |
适用范围 Cable Range |
包装 Packing (M/Roll) |
||
| 内径mm 1.D |
壁厚 Thickness |
内径mm 1.D |
壁厚 Thickness |
|||
| Ø1.0/0.5 | 1.50±0.30 | 0.20±0.05 | 0.60 | 0.35±0.05 | 0.50~0.90 | 200 |
| Ø1.5/0.75 | 2.00±0.30 | 0.20±0.05 | 0.80 | 0.35±0.05 | 0.75~1.40 | 200 |
| Ø2.0/1.0 | 2.50±0.30 | 0.20±0.05 | 1.00 | 0.42±0.05 | 100~1.80 | 200 |
| Ø2.5/1.25 | 3.00±0.30 | 0.20±0.05 | 1.25 | 0.42±0.05 | 1.25~2.30 | 200 |
| Ø3/1.5 | 4.00±0.30 | 0.20±0.05 | 1.75 | 0.42±0.05 | 1.75~3.20 | 200 |
| Ø4.0/2.0 | 4.50±0.30 | 0.20±0.05 | 2.00 | 0.45±0.05 | 2.00~3.60 | 200 |
| Ø5.0/2.5 | 5.50±0.30 | 0.28±0.05 | 2.50 | 0.50±0.08 | 2.50~4.50 | 100 |
| Ø6.0/3.0 | 6.50±0.30 | 0.28±0.08 | 3.00 | 0.50±0.08 | 3.00~5.40 | 100 |
| Ø7.0/3.5 | 7.50±0.30 | 0.30±0.08 | 3.50 | 0.55±0.08 | 3.50~6.30 | 100 |
| Ø8.0/4.0 | 8.50±0.30 | 0.30±0.08 | 4.00 | 0.60±0.08 | 4.00~7.20 | 100 |
| Ø9.0/4.5 | 9.50±0.30 | 0.30±0.08 | 4.50 | 0.60±0.08 | 4.50~8.00 | 100 |
| Ø10.0/5.0 | 10.50±0.50 | 0.30±0.08 | 5.00 | 0.60±0.08 | 5.00~9.00 | 100 |
| Ø11.0/5.5 | 11.50±0.50 | 0.30±0.10 | 5.50 | 0.60±0.08 | 5.50~10.00 | 100 |
| Ø12.0/6.0 | 12.50±0.50 | 0.30±0.10 | 6.00 | 0.60±0.08 | 6.00~11.00 | 100 |
| Ø13.0/6.5 | 13.50±0.50 | 0.35±0.10 | 6.50 | 0.65±0.08 | 6.50~12.00 | 100 |
| Ø14.0/7.0 | 14.50±0.50 | 0.35±0.10 | 7.00 | 0.65±0.08 | 7.00~13.00 | 100 |
| Ø15.0/7.5 | 15.50±0.60 | 0.40±0.12 | 7.50 | 0.70±0.08 | 7.50~14.00 | 100 |
| Ø16.0/8.0 | 16.50±0.60 | 0.40±0.12 | 8.00 | 0.70±0.08 | 8.00~15.00 | 100 |
| Ø18.0/9.0 | 19.00±0.60 | 0.40±0.12 | 9.00 | 0.80±0.15 | 9.00~17.00 | 100 |
| Ø20.0/10.0 | 21.00±0.60 | 0.40±0.15 | 10.00 | 0.80±0.15 | 10.00~19.00 | 100 |
| Ø22.0/11.0 | 23.00±0.70 | 0.45±0.15 | 11.00 | 0.90±0.15 | 11.00~21.00 | 100 |
| Ø50.0/25.0 | 50.50±0.70 | 0.50±0.15 | 25.00 | 1.00±0.15 | 25.00~49.00 | 25 |
| Ø60.0/30.0 | 60.50±0.70 | 0.55±0.15 | 30.00 | 1.00±0.20 | 30.00~59.00 | 25 |
| Ø70.0/35.0 | 70.50±0.70 | 0.55±0.15 | 35.00 | 1.00±0.20 | 35.00~69.00 | 25 |
注：其他尺寸可根据要求制造
Note: other dimensions can be manufactured upon requested
