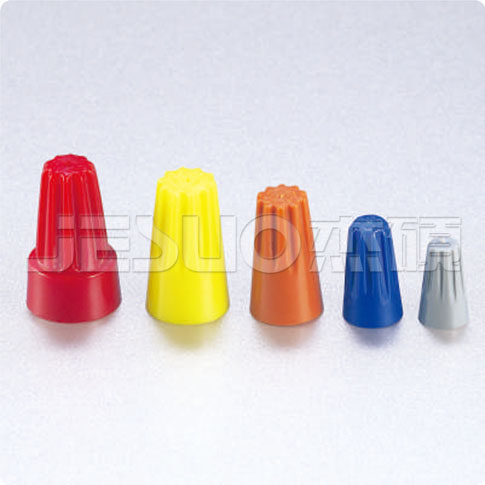

●材质：UL nylon66, 内部带弹簧
●使用方式： 将电线尾部外皮剥去，插入压线帽，然后拧紧。
●Material: UL nylon66, with spring inside.
●Usage: peel wire coat, insert the wire in, then tighten.
| 型号 Item No. |
高 Height (mm) |
宽 Width (mm) |
D (mm) | 适用导线 Suitable Wire |
| P71 | 15 | 9 | 7 | 0.5-1.0mm2 (AWG22-18) |
| P72 | 18 | 10 | 8 | 1.0-1.5mm2 (AWG18-16) |
| P73 | 23 | 11 | 10 | 1.5-2.5mm2 (AWG16-14) |
| P74 | 24 | 14 | 11 | 2.5-4mm2 (AWG14-12) |
| P75 | 28 | 16 | 13 | 4-6mm2 (AWG12-10) |
| P78 | 32 | 18 | 14 | 10-16mm2 (AWG 6) |
