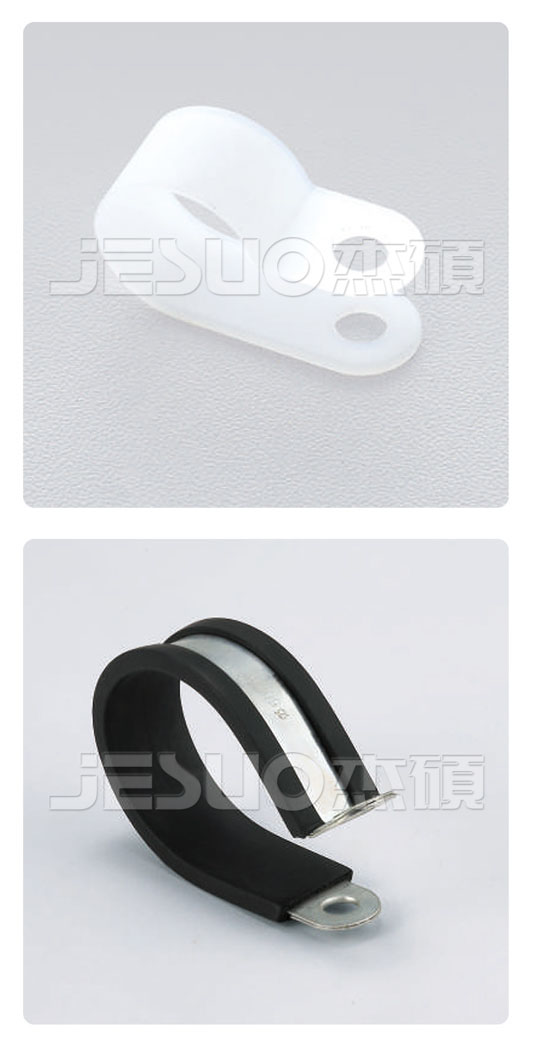

●材质：UL认可尼龙66，防火等级94V-2，可重复使用。
●使用方法：将电缆置于固定扣内，再以螺丝固定。
●Material: Nylon 66 94V-2 agread by UL
●Usage: Put cable in fix by serew.
| 型号 ITEM No. |
A(mm) | B(mm) | C(mm) | D(mm) | 包装 PACKING |
|
| mm | inch | |||||
| JS-1/8R | 9.5 | 9.6 | 3.2 | 1/8" | 19.8 | 100PCS |
| JS-3/16R | 9.6 | 9.6 | 4.8 | 3/16" | 19.8 | |
| JS-1/4R | 12.0 | 10.0 | 6.35 | 1/4" | 22.0 | |
| JS-5/16R | 12.0 | 10.0 | 7.9 | 5/16" | 22.0 | |
| JS-3/8R | 12.5 | 12.0 | 9.5 | 3/8" | 24.0 | |
| JS-1/2R | 15.2 | 12.0 | 12.7 | 1/2" | 31.0 | |
| JS-5/8R | 18.2 | 12.0 | 15.8 | 5/8" | 34.3 | |
| JS-3/4R | 18.2 | 12.0 | 19.4 | 3/4" | 35.0 | |
| JS-1R | 22.0 | 12.0 | 25.4 | 1" | 43.0 | |
| JS-17/16R | 24.0 | 12.0 | 27.5 | 17/16" | 50.0 | |
| JS-5/4R | 26.2 | 12.0 | 31.8 | 11/4" | 46.2 | |
| JS-3/2R | 30.0 | 12.0 | 36.7 | 11/2" | 50.0 | |
