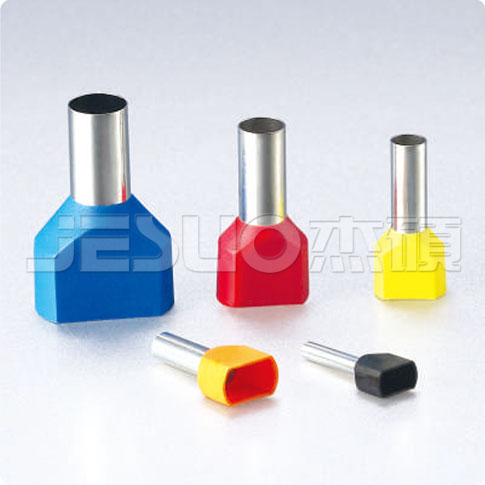

材质Material: 铜管Copper Pipe
绝缘材质Insulating Cover Material: Nylon, PVC
| 型号 Item No . |
导线截面积 Conductor (mm2) |

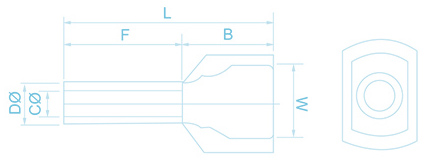

尺寸 Dimension (mm) | 颜色 Color | ||||||
| L | L | W | B | DØ | CØ | 法式 French |
德式 German |
||
| TE 0508 | 2×0.5 | 8.0 | 14.5 | 5.0 | 6.5 | 1.8 | 1.5 | 白White | 白White |
| TE 7508 | 2×0.75 | 8.0 | 14.7 | 5.5 | 6.7 | 2.1 | 1.8 | 蓝Blue | 蓝Blue |
| TE 7510 | 2×0.75 | 10.0 | 16.7 | 5.5 | 6.7 | 2.1 | 1.8 | ||
| TE 1008 | 2×1.0 | 8.0 | 15.1 | 5.5 | 7.1 | 2.3 | 2.0 | 红Red | 红Red |
| TE 1010 | 2×1.0 | 10.0 | 17.1 | 5.5 | 7.1 | 2.3 | 2.0 | ||
| TE 1508 | 2×1.5 | 8.0 | 15.5 | 6.4 | 7.2 | 2.6 | 2.3 | 黑Black | 蓝Blue |
| TE 1512 | 2×1.5 | 12.0 | 19.5 | 6.4 | 7.5 | 2.6 | 2.3 | ||
| TE 1510 | 2×2.5 | 10.0 | 18.5 | 8.0 | 8.5 | 3.3 | 2.9 | 灰Gray | 蓝Blue |
| TE 2513 | 2×2.5 | 13.0 | 21.5 | 8.0 | 8.5 | 3.3 | 2.9 | ||
| TE 4012 | 2×4.0 | 12.0 | 23.1 | 8.8 | 11.1 | 4.2 | 3.8 | 橙Orange | 灰Grey |
| TE 6014 | 2×6.0 | 14.0 | 26.1 | 9.5 | 12.1 | 5.3 | 4.9 | 绿Green | 黄Yellow |
| TE 10-14 | 2×10.0 | 14.0 | 26.6 | 12.6 | 12.0 | 6.9 | 6.5 | 棕Brown | 红Red |
| TE 16-14 | 2×16.0 | 14.0 | 31.3 | 19.0 | 17.3 | 8.7 | 8.3 | 象牙白Ivory | 蓝Blue |
