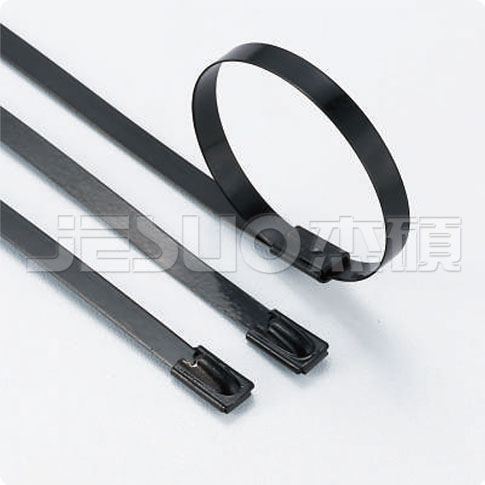

●材质：采用不锈钢201, 304, 316材质，外喷环氧树脂热固性粉涂料，各种长度皆可制作， 接受合理的OEM。
●特性：耐酸、耐腐蚀、不易燃烧，抗张强度高，滚珠式结构使的YFQP型扎带具有简单，快捷， 不可解开等安装上的优势
●工作温度范围：-40℃~85℃
●Material: Stainless steel 201, 304, 316, PVC coated; All length color are available;
●Characteristic: They have an unique hall locking with plastic jetting mechanism that allow easily and quickly installed and not undone, high tensile strength; Non-flammability, self-locked ,easyquick application, High resistance to acetic acid, alkali acid, sulphuric acid, corrode…etc.
●Operating temperature:-40℃~85℃
| 规格型号 Part No. |
长度 Approx. Length mm(inch) |
宽度 Approx. Width mm(inch) |
捆绑直径 Max. Bundle Dia. mm(inch) |
拉力 Min. loop Tensile Strength N(lbs) |
| JSQP-4.6×150 | 150(5.9) | 4.6(0.181) | 37(1.46) | 600(135) |
| JSQP-4.6×200 | 200(7.87) | 50(1.97) | ||
| JSQP-4.6×250 | 250(9.84) | 63(2.48) | ||
| JSQP-4.6×300 | 300(11.8) | 76(2.99) | ||
| JSQP-4.6×350 | 350(13.78) | 89(3.5) | ||
| JSQP-4.6×400 | 400(15.75) | 102(4.02) | ||
| JSQP-4.6×450 | 450(17.72) | 115(4.53) | ||
| JSQP-4.6×500 | 500(19.69) | 128(5.04) | ||
| JSQP-4.6×550 | 550(21.65) | 141(5.55) | ||
| JSQP-4.6×600 | 600(23.62) | 154(6.06) | ||
| JSQP-7.9×150 | 150(5.9) | 7.9(0.311) | 37(1.46) | 800(180) |
| JSQP-7.9×200 | 200(7.87) | 50(1.97) | ||
| JSQP-7.9×250 | 250(9.84) | 63(2.48) | ||
| JSQP-7.9×300 | 300(11.8) | 76(2.99) | ||
| JSQP-7.9×350 | 350(13.78) | 89(3.5) | ||
| JSQP-7.9×400 | 400(15.75) | 102(4.02) | ||
| JSQP-7.9×450 | 450(17.72) | 115(4.53) | ||
| JSQP-7.9×500 | 500(19.69) | 128(5.04) | ||
| JSQP-7.9×550 | 550(21.65) | 141(5.55) | ||
| JSQP-7.9×600 | 600(23.62) | 154(6.06) | ||
| JSQP-7.9×650 | 650(25.59) | 167(6.57) | ||
| JSQP-7.9×700 | 700(27.56) | 180(7.09) | ||
| JSQP-7.9×750 | 750(29.53) | 191(7.52) | ||
| JSQP-7.9×800 | 800(31.5) | 193(7.59) |
