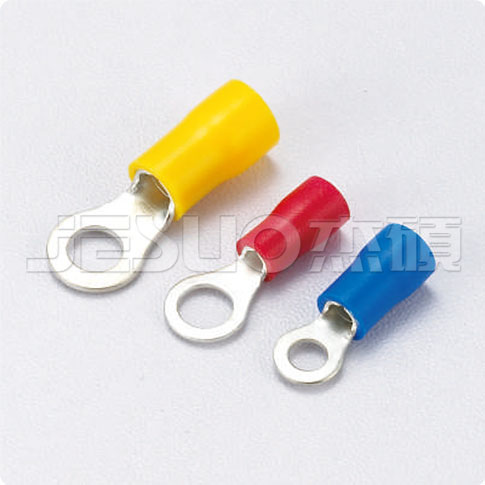

Ring Shape Pre-insulation Terminal

导线范围 Size of cable: 0.5~1.5mm2(A.W.G 22~16)
最大电流 Max. Current=19A

型号
Item No .		 美制螺栓号
Stud Size		 螺栓口直径
Screw dia.
d2Ø(mm)		 尺寸 Dimension (mm) 颜色
Color

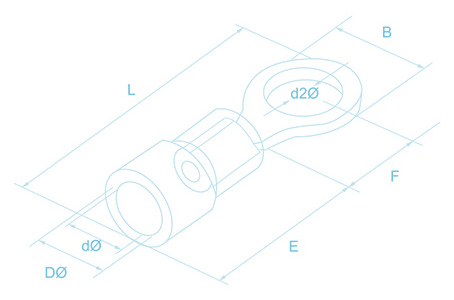

B L F E DØ dØ
RV 1.25-3.2 #4 3.2 5.7 17.8 4.95 10.0 4.3 1.8 红
Red
RVS 1.25-3.7 #6 3.7 5.7 17.8 4.95
RVM 1.25-3.7 #6 3.7 6.6 20.1 6.3
RVL 1.25-3.7 #8 3.7 8.0 21.5 7.0
RVS 1.25-4 #8 4.3 6.6 20.1 6.3
RVL 1.25-4 #8 4.3 8.0 21.5 7.0
RV 1.25-5 #10 5.3 8.0 21.5 7.0
RV 1.25-6 1 / 4 6.5 11.6 27.5 11.1
RV 1.25-8 5/16 8.4 11.6 27.5 11.1
RV 1.25-10 3/8 10.5 13.6 31.6 13.9

导线范围 Size of cable: 1.5~2.5mm2(A.W.G 16~14)
最大电流 Max. Current=27A
型号
Item No .		 美制螺栓号
Stud Size		 螺栓口直径
Screw dia.
d2Ø(mm)		 尺寸 Dimension (mm) 颜色
Color
B L F E DØ dØ
RV 2-3.2 #4 3.2 6.6 17.8 4.3 10.0 4.9 2.4 蓝
Blue
RVS 2-3.7 #6 3.7 6.6 17.8 4.3
RVM 2-3.7 #6 3.7 6.6 21.0 7.0
RVL 2-3.7 #8 3.7 8.5 22.5 7.75
RVS 2-4 #8 4.3 6.6 21.0 7.0
RVL 2-4 #8 4.3 8.5 22.5 7.75
RVS 2-5 #10
 5.3 8.5 22.5 7.75
RVL 2-5 #10 5.3 9.5 22.5 7.25
RV 2-6 1 / 4 6.5 12.0 27.6 11.0
RV 2-8 5/16 8.4 12.0 27.6 11.0
RV 2-10 3/8 10.5 13.6 30.2 13.9

导线范围 Size of cable: 4~6mm2(A.W.G 12~10)
最大电流 Max. Current=48A
型号
Item No .		 美制螺栓号
Stud Size		 螺栓口直径
Screw dia.
d2Ø(mm)		 尺寸 Dimension (mm) 颜色
Color
B L F E DØ dØ
RV 3.5-4 #6 4.3 8.0 24.5 7.7 12.5 6.2 3.2 黑
Black
RVS 3.5-5 #8 5.3 8.0 24.5 7.7
RVL 3.5-5 #10 5.3 12.0 27.9 7.7
RV 3.5-6 1 / 4 6.5 12.0 27.9 7.7

导线范围 Size of cable: 4~6mm2(A.W.G 12~10)
最大电流 Max. Current=48A
型号
Item No .		 美制螺栓号
Stud Size		 螺栓口直径
Screw dia.
d2Ø(mm)		 尺寸 Dimension (mm) 颜色
Color
B L F E DØ dØ
RV 5.5-3.7 #6 3.7 7.2 21.4 5.9 12.5 6.7 4.0 黄
Yellow
RVS 5.5-4 #8 4.3 7.2 21.4 5.9
RVL 5.5-4 #8 4.3 9.5 25.5 8.3
RV 5.5-5 #10 5.3 9.5 25.5 8.3
RV 5.5-6 1 / 4 6.5 12.0 31.5 13.0
RV 5.5-8 5/16 8.4 15.0 33.7 13.7
RV 5.5-10 3/8 10.5 15.0 33.7 13.7
RV 5.5-12 1 / 2 13 19.2 38.1 16.0
