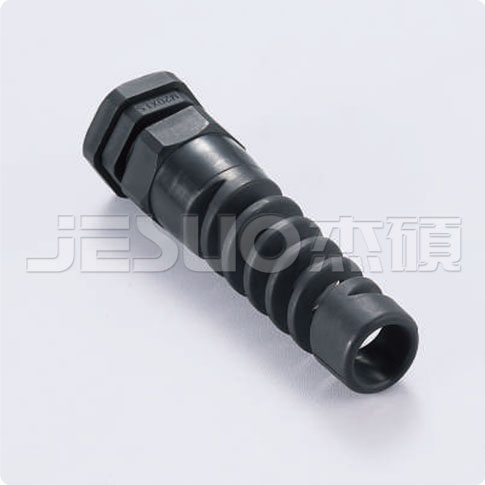

M Nylon Cable Glands with Strain Relief

Thread
mm		 H
mm		 GL
mm		 d
mm
mm
M 12 x 1,5 3-6,5 54 8 7 15
M 12 x 1,5 2-5 54 8 7 15
M 16 x 1,5 4-8 63 8 8,5 19
M 16 x 1,5 2-6 63 8 8,5 19
M 16 x 1,5 5-10 78 8 10,5 22
M 16 x 1,5 3-7 78 8 10,5 22
M 20 x 1,5 6-12 90 9 13 24
M 20 x 1,5 5-9 90 9 13 24
M 20 x 1,5 10-14 100 9 15,5 27
M 20 x 1,5 7-12 100 9 15,5 27
M 25 x 1,5 13-18 114 11 20 33
M 25 x 1,5 9-16 114 11 20 33
