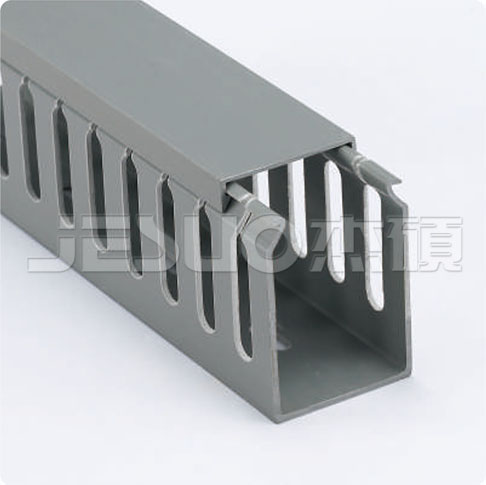

●材质：南亚硬质PVC(灰色)，绝缘性良好、不自燃、耐温至85℃。
●构造：由槽底及槽盖两部分组成，底槽两侧设出线孔。
●Material: Made from PVC (grey), good insulation and heat-resisting up to 85℃.
●Structure: Made up of duct bottom and lid, with two out-holes designed at the bottom.

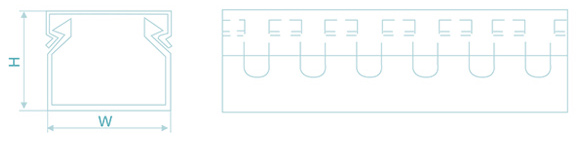

| 型号 Type |
高× 宽 H×W(mm) |
电线容量 Contained wire (2.02) |
长度 Length |
| PXC3-2015 | 20×15 | 5-10 PCS | 2m |
| PXC3-2025 | 20×25 | 5-15 PCS | 2m |
| PXC3-2525 | 25×25 | 10-20 PCS | 2m |
| PXC3-3015 | 30×15 | 5-15 PCS | 2m |
| PXC3-3020 | 30×20 | 10-20 PCS | 2m |
| PXC3-3025 | 30×25 | 15-25 PCS | 2m |
| PXC3-3030 | 30×30 | 20-40 PCS | 2m |
| PXC3-3035 | 30×35 | 30-45 PCS | 2m |
| PXC3-3045 | 30×45 | 40-55 PCS | 2m |
| PXC3-3530 | 35×30 | 30-45 PCS | 2m |
| PXC3-3535 | 35×35 | 35-50 PCS | 2m |
| PXC3-3540 | 35×40 | 50-60 PCS | 2m |
| PXC3-4025 | 40×25 | 20-25 PCS | 2m |
| PXC3-4030 | 40×30 | 35-45 PCS | 2m |
| PXC3-4040 | 40×40 | 60-70 PCS | 2m |
| PXC3-5015 | 50×15 | 10-25 PCS | 2m |
| PXC3-5025 | 50×25 | 25-45 PCS | 2m |
| PXC3-5030 | 50×30 | 30-50 PCS | 2m |
| PXC3-5035 | 50×35 | 50-60 PCS | 2m |
| PXC3-5040 | 50×40 | 60-70 PCS | 2m |
| PXC3-5045 | 50×45 | 70-80 PCS | 2m |
| PXC3-5050 | 50×50 | 80-90 PCS | 2m |
| PXC3-5055 | 50×55 | 100-110 PCS | 2m |
| PXC3-5080 | 50×80 | 180-200 PCS | 2m |
| PXC3-50100 | 50×100 | 210-260 PCS | 2m |
| PXC3-8045 | 80×45 | 160-180 PCS | 2m |
| PXC3-8050 | 80×50 | 180-200 PCS | 2m |
| PXC3-8055 | 80×55 | 180-210 PCS | 2m |
| PXC3-8080 | 80×80 | 240-290 PCS | 2m |
| PXC3-80100 | 80×100 | 260-350 PCS | 2m |
| PXC3-100100 | 100×100 | 300-400 PCS | 2m |
