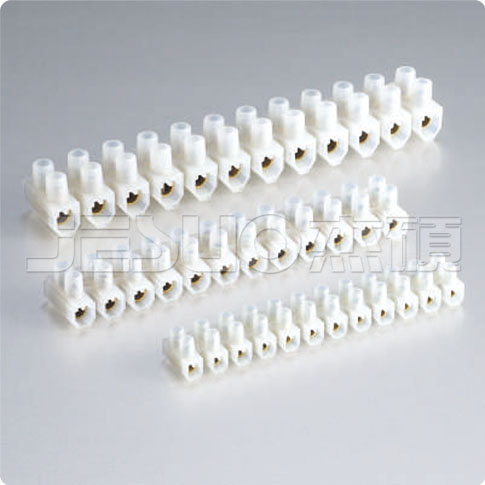

材质 Material: PA, PE or PP
颜色：本色，黑色，白色 Color: Natural, Black, White
| 型号 Item No . |
额定电流 Rated current(A) |
导线截面积 Section size (mm2) |

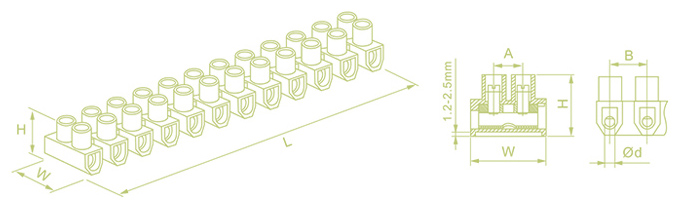

尺寸 Dimension (mm) | |||||
| L (mm) |
W (mm) |
H (mm) |
A (mm) |
B (mm) |
Ød (mm) |
|||
| F-3 | 3 | 2.5/4 | 91.25 | 15.7 | 13.5 | 5.7 | 8 | 3.2 |
| F-5 | 5 | 6 | 109.35 | 16.9 | 14.5 | 6.5 | 9.21 | 3.3 |
| F-10 | 10 | 10 | 126.2 | 20.25 | 15.8 | 8.25 | 10.6 | 3.85 |
| F-15 | 15 | 12 | 135 | 22.6 | 17.6 | 8.3 | 11.9 | 4.3 |
| F-30 | 30 | 16 | 156 | 25.65 | 20.5 | 9.1 | 13.1 | 5.5 |
| F-60 | 60 | 25 | 189 | 29.9 | 25.6 | 13.0 | 15.8 | 6.6 |
| F-80 | 80 | 30 | 205 | 36.1 | 29.9 | 14.2 | 17.2 | 7.3 |
